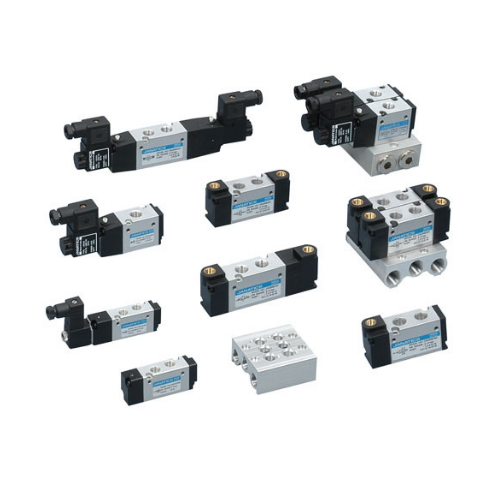

JANATICS COMPACT VALVE 1/8",1/4" AND 1/2" DS2

JANATICS DS2 Solenoid Valvesare high-performance, pilot-operated spool valves designed for reliable directional control in pneumatic automation systems
The DS2 series is available in 3/2-way, 5/2-way, and 5/3-wayconfigurations withsingle solenoid, double solenoid, air pilot, and external solenoid pilotoptions to meet a wide range of pneumatic control requirements. Designed with a durable aluminium body and precision spool mechanism, these valves ensure fast switching, low pressure loss, and consistent performance under continuous operation.

Valve Type: Solenoid valves
Port Sizes: G1/8", G1/4", G1/2"
Valve Functions: 3/2, 5/2, 5/3
Working Pressure: Typically 2–10 bar (depending on model)
Medium: Filtered and lubricated compressed air
Ambient Temperature: 5°C to 60°C
Coil Protection: IP65
Insulation Class: Class F
Voltage Options: 24V AC/DC, 48V, 110V, 220V and other standard voltages
Mounting: Individual or manifold mounting

Send inquiry for JANATICS COMPACT VALVE 1/8",1/4" AND 1/2" DS2
