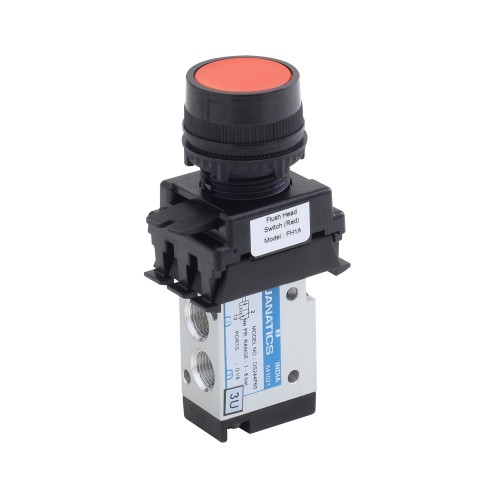

JANATICS PENAL MOUNTING VALVE G1/8, GM5

MANUALLY OPERATED VALVE - 1/8 Series DS2

• Spool design
• Suitable for Panel mounting
• Mounting provision for individual unit
• Basic unit common for all the switches
• Wide range of switches available

  Port Size: G1/8 for inlet, outlet & exhaust.
  Valve Types: 3/2 (three ports, two positions) and 5/2 (five ports, two positions).
  Design: Spool-type pneumatic valve.
  Medium: Compressed air (dry & filtered, can be lubricated).
  Working Pressure: ~1–8 bar (operational range).
  Flow Rate: Around 450 L/min (depending on model).
  Panel Mounting: Designed with mounting provision for panel thickness ~1–4 mm.
  Operating Temp: Typically ~+5 to +60 °C.
   These panel mounting valves are widely used for pneumatic control of actuators, cylinders, and industrial automation systems where air direction needs to be switched manually or via an actuator/switch.

  Tip: When choosing a specific valve model, consider whether you need a 3/2 or 5/2 configuration, and if a switch or actuator head (flush, lever, mushroom) suits your interface. The G1/8 and M5 size is common for smaller pneumatics and air control setup
