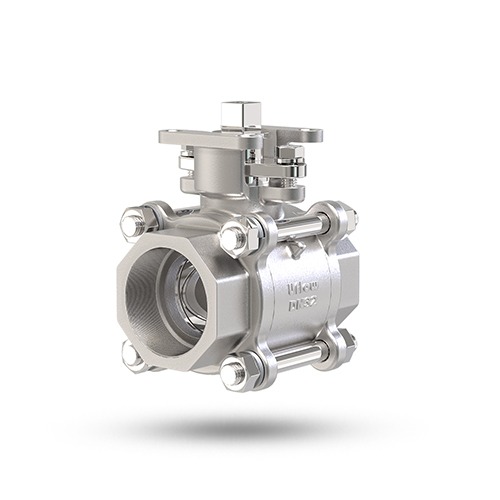

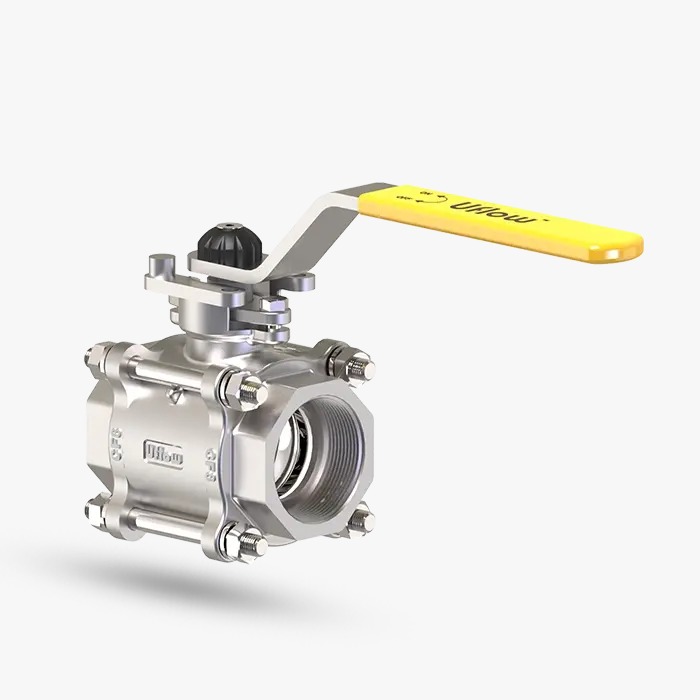

UFLOW 3 PIECE DESIGN BALL VALVE JC SERIES
The UFLOW JC Series 3-piece ball valve is a 'full-bore' industrial ball valve designed for reliable 'on/off' flow isolation in demanding piping applications. Its 3-piece construction facilitates easy maintenance, while the 'floating ball' and 'blow-out-proof stem' ensure reliable performance and sealing. Key Features
3-piece design, full-bore ball valve
Floating ball design
Blow-out-proof stem
Precision-machined and mirror-finished ball, ensuring 'bubble-tight' (completely leak-free) shut-off
Available with lever, gear, pneumatic, or actuator operation
ISO 5211 mounting pad for actuator installation
Available in flanged, screwed, and socket-weld configurations
Specifications
Series: JC
Size: 1/2" to 4" (DN15–DN100)
Pressure Class: 150# / 300#
Body Materials: CF8, CF8M, CF3M, WCB
Seat/Seal: PTFE, RPTFE, CFT, GFT, PEEK
Stem: SS304 / SS316 / SS410
Connection: Flanged / Screwed / Socket Weld
