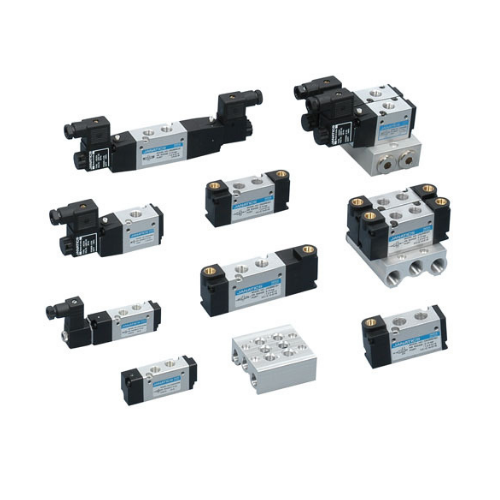

JANATICS COMPACT VALVE G1/4 DS5

DS5 series - Single solenoid pilot operated valve

• Mounting provision for individual unit
• Compact size
• Manual override
• Wide range of coil voltages
• Suitable for manifold mounting (M004...series)



• Port Size: G1/4 (standard pneumatic thread)
  Medium: Compressed air (filtered & lubricated)
  Operating Pressure: ~2 to 10 bar (~29–145 psi)
  Flow Capacity: ~1000 L/min (nominal)
  Manual Override: Yes — allows manual actuation for testing or setup
  Mounting: Can be mounted individually or on a manifold
  Voltage Options (±10%): AC: 24 V, 48 V, 110 V, 220 V , DC: 12 V, 24 V, 48 V, 110 V
